Foundation November 2018 Paper 1 Q18
18 Here are five shapes, A to E.
| A | Parallelogram |
| B | Regular pentagon |
| C | Rhombus |
| D | Scalene triangle |
| E | Trapezium |

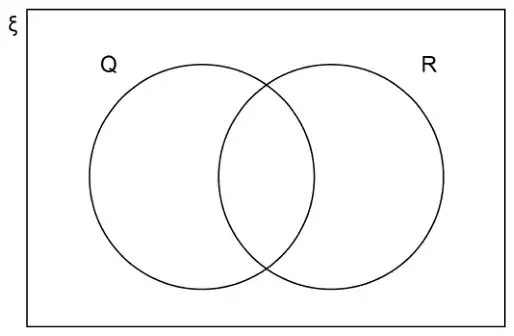

In the Venn diagram,
\(\xi\) is the set of all shapes
Q is the set of quadrilaterals
R is the set of shapes which always have rotational symmetry.
Complete the Venn diagram with the letters A to E. [3 marks]

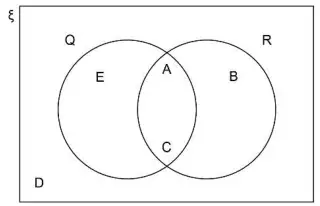

| Answer | Mark | Comments |
|---|---|---|
 | B3 | D can be anywhere inside the rectangle and outside the circles B2 for 3 or 4 letter positions correct B1 for 1 or 2 letter positions correct |
Additional guidance
Accept names of shapes written on diagram but do not accept first letter only (ambiguous)
Duplicating a letter in more than one region is choice and that letter cannot be counted as correct
Ignore anything written outside the rectangle
