Foundation November 2017 Paper 3 Q15

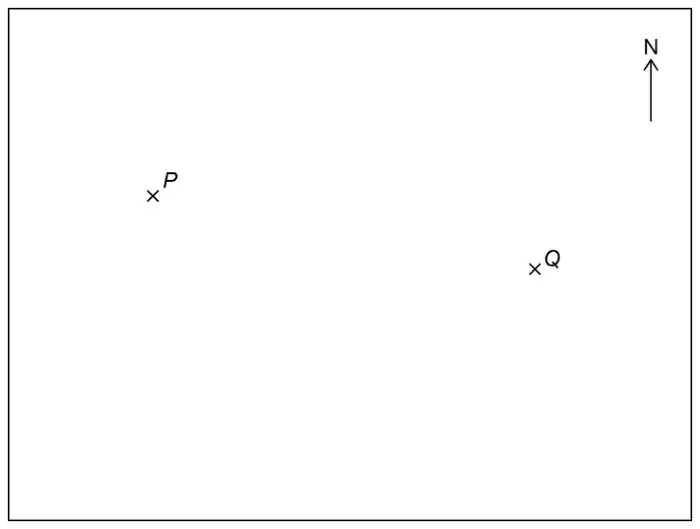

15 Here is a map showing two towns, P and Q.
Scale: 1 cm represents 50 km
(a) Work out the actual distance between towns P and Q. [2 marks]
(b) Town R is 200 km due South of town P.
Mark R on the map. [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| [6.9, 7.1] (cm) | B1 | |
| [345, 355] | B1ft | ft their [6.9, 7.1] \(\times\) 50 |
Additional guidance
| [345, 355] without sight of [6.9, 7.1] | B1B1 |
| Answer | Mark | Comments |
|---|---|---|
| R marked [3.9, 4.1] cm due South of P | B2 | B1 for R marked [3.9, 4.1] cm from P or R marked due South of P or 4 (cm) seen |
