Foundation June 2025 Paper 3 Q19

AQACurrent spec5 marksConstructions

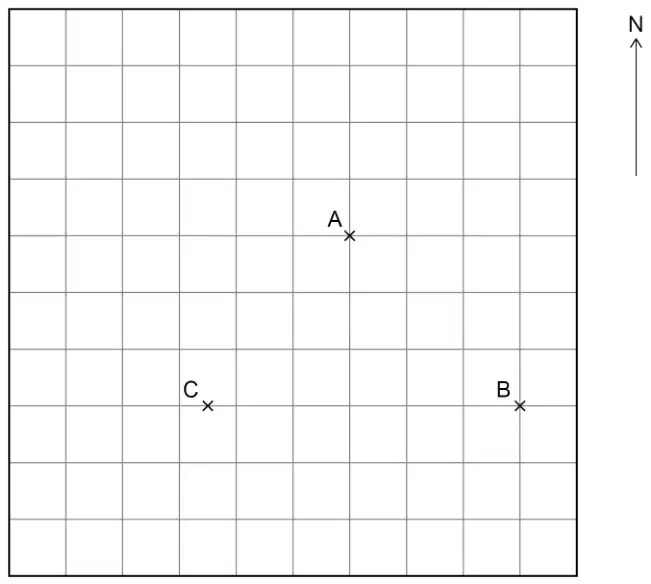

19 Here is a scale diagram showing towns A, B and C on a centimetre grid.

Scale 1 : 200 000

(a) Work out the actual distance from B to C.

Give your answer in kilometres. [4 marks]

(b) B is South East of A.

Write down the bearing of B from A. [1 mark]

Mark scheme (a)

Answer	Mark	Comments
[5.3, 5.7]	B1	oe eg 5 and a half may be seen on diagram
\(\dfrac{\text{their } [5.3, 5.7] \times 200\,000}{100 \times 1000}\)	M2	oe M1 correct step using one operator eg1 their [5.3, 5.7] \(\times\) 200 000 eg2 their [5.3, 5.7] \(\div\) 100 eg3 \(200\,000 \div 1000\) eg4 \(100 \times 1000\) their [5.3, 5.7] \(\lt\) 10 [1 060 000, 1 140 000] implies B1M1
[10.6, 11.4]	A1	implies B1

Answer 10.8 without [5.3, 5.7]

B1M2A1
