Foundation June 2023 Paper 1 Q13
13 Students choose juice with their school meal in the ratio
orange : apple : lime \(=\) 5 : 2 : 3

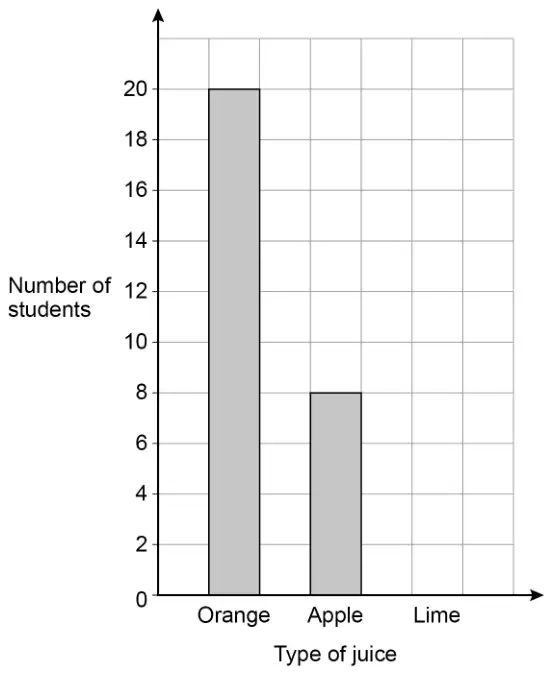

Complete the bar chart. [3 marks]
| Answer | Mark | Comments |
|---|---|---|
| Alternative method 1 – using the given scale | ||
| (O) \(20 \div 5\) or (A) \(8 \div 2\) or 4 or (O) \(5 \div 20\) or (A) \(2 \div 8\) or \(\dfrac{1}{4}\) | M1 | oe |
| their \(4 \times 3\) or \(3 \div\) their \(\dfrac{1}{4}\) or their \(4 \times\) their \((5 + 3 + 2) - 20 - 8\) or 12 | M1dep | \(20 - 8\) implies M2 may be on diagram |
| Correct width bar, in the correct position, drawn to height of 12 | A1 | mark intention, ignore any shading |
| Alternative method 2 – using squares | ||
| (O) \(10 \div 5\) or (A) \(4 \div 2\) or 2 (squares) | M1 | |
| their \(2 \times 3\) or 6 (squares) | M1dep | \(10 - 4\) implies M2 may be on diagram |
| Correct width bar, in the correct position, drawn to height of 12 | A1 | mark intention, ignore any shading |
Additional guidance
| \((20 + 8) \div (5 + 2)\) \((10 + 4) \div (5 + 2)\) | M1 M1 |
