Foundation June 2019 Paper 2 Q18

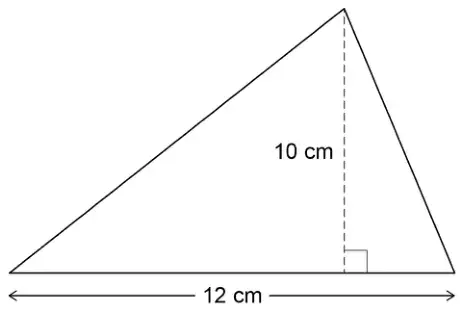

18 A force of 180 newtons (N) is applied to the surface of this triangle.
Not drawn accurately
Work out the pressure.
Use \(\quad \text{pressure} = \dfrac{\text{force}}{\text{area}}\) [3 marks]
| Answer | Mark | Comments |
|---|---|---|
| \(0.5 \times 10 \times 12\) or 60 | M1 | oe |
| \(180 \div\) their 60 | M1dep | |
| 3 | A1 | SC1 1.5 oe |
