Foundation June 2019 Paper 1 Q11
11 Here is a triangle on a square dotty grid.

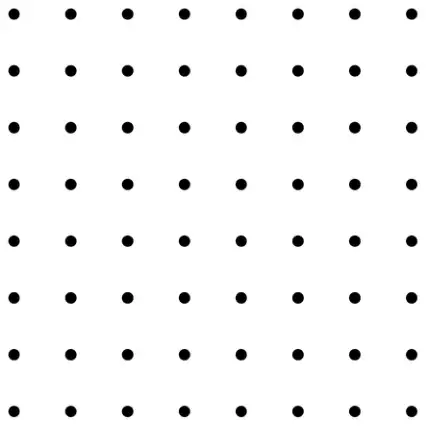

(a) On the grid below, show how you can make a parallelogram with two of these triangles. [1 mark]
(b) On the grid below, show how you can make a trapezium with three of these triangles. [1 mark]
(c) On the grid below, show how you can make a rhombus with four of these triangles. [1 mark]
| Answer | Mark | Comments |
|---|---|---|
| Correct shape drawn in any orientation | B1 |
Additional guidance

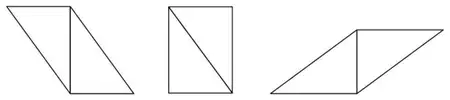

eg | B1 |
| Mark intention with regard to vertices on dots and use of straight lines | |
| Condone wrong size triangles drawn, as long as they are right-angled, scalene and congruent | |
| Internal lines must be drawn to show position of triangles | |
| Allow students to extend grid with dots but shapes not on (extended) grid cannot score |
| Answer | Mark | Comments |
|---|---|---|
| Correct shape drawn in any orientation | B1 |
Additional guidance

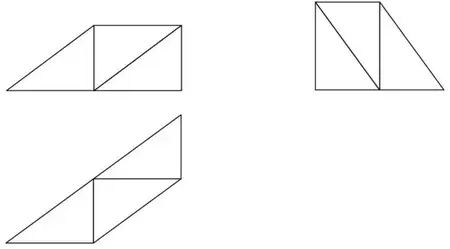

eg
Mark intention with regard to vertices on dots and use of straight lines
Condone wrong size triangles drawn, as long as they are right-angled, scalene and congruent
Internal lines must be drawn to show position of triangles
Allow students to extend grid with dots but shapes not on (extended) grid cannot score
| Answer | Mark | Comments |
|---|---|---|
| Correct shape drawn in any orientation | B1 |
Additional guidance
eg
Condone an arrangement which produces an internal rhombus
eg
Mark intention with regard to vertices on dots and use of straight lines
Condone wrong size triangles drawn, as long as they are right-angled, scalene and congruent
Internal lines must be drawn to show position of triangles
Allow students to extend grid with dots but shapes not on (extended) grid cannot score
