Foundation June 2018 Paper 3 Q16

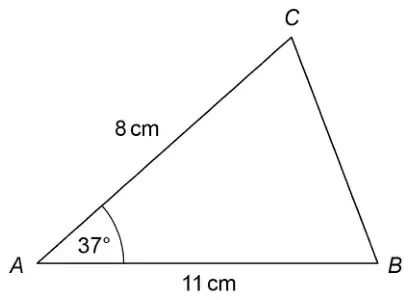

16 A sketch of triangle ABC is shown.
Not drawn accurately
In the space below, complete an accurate drawing of triangle ABC. [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| AC has length [7.8, 8.2] cm and Angle CAB is [35, 39]° and full triangle is drawn | B2 | B1 for AC has length [7.8, 8.2] cm and if redrawn AB has length [10.8, 11.2] cm or Angle CAB is [35, 39]° |
Additional guidance
Ignore labelling
Sides need to be ruled for B2
If AB is redrawn, it must have length [10.8, 11.2] cm for B2
If two triangles drawn, the one on the given line AB takes precedence, unless crossed out
