Intermediate June 2023 Unit 1 Q17

WJECIntermediateCurrent spec5 marksTree Diagrams

17. Whitney walks, cycles or travels on the bus to work each day.

On any randomly chosen day:

  • the probability that she walks to work is 0·25
  • the probability that she cycles to work is 0·45.

At work, the probability that there will be a fire drill on any randomly chosen day is 0·04.

How Whitney travels to work is independent of whether or not there is a fire drill.

(a) Complete the tree diagram shown below. [3]

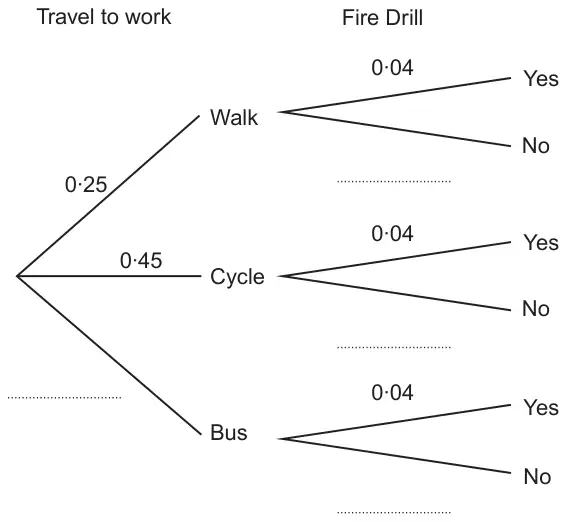

Tree diagram. Travel to work: Walk 0·25, Cycle 0·45, Bus (blank). Fire Drill after each: Yes 0·04, No (blank)
(b) On a randomly chosen day, what is the probability that Whitney walks to work and there is a fire drill? [2]
