Foundation November 2020 Paper 3 Q23

OCRFoundationCurrent spec5 marksTree Diagrams

23 The probability that Adam cycles to school or walks to school depends on the weather.

  • On any day, the probability that the weather is wet is 0.4.
  • When the weather is wet the probability that he cycles to school is 0.3.
  • When the weather is dry the probability that he cycles to school is 0.8.

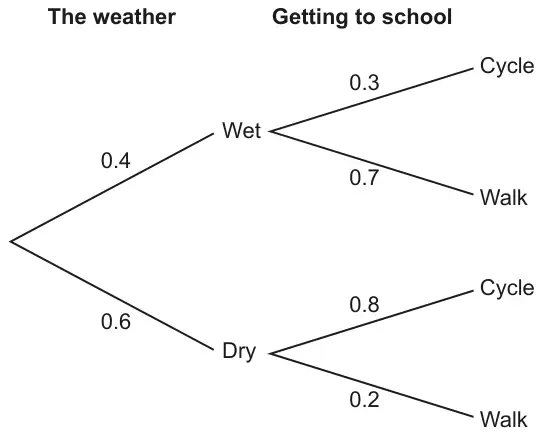

The information is shown on this tree diagram.

Tree diagram. The weather: Wet 0.4, Dry 0.6. Getting to school: after Wet, Cycle 0.3 and Walk 0.7; after Dry, Cycle 0.8 and Walk 0.2

Work out the probability that

(a) it is dry and Adam walks to school, [2]
(b) Adam cycles to school. [3]
