4MA0 Higher June 2016 Paper 4R Q7

EdexcelHigherOld spec3 marksCircles & Sectors

7 Here are two circles.

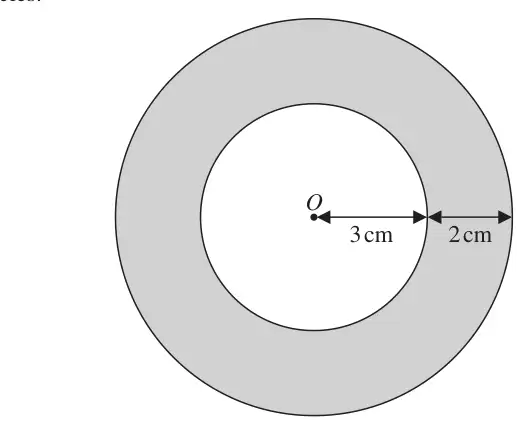

Two circles with the same centre O; inner radius 3 cm, shaded ring 2 cm wide

Diagram NOT accurately drawn

The circles have the same centre \(O\).
The radius of the inner circle is 3 cm.
The width of the shaded region between the inner circle and outer circle is 2 cm.

Work out the area of the shaded region.
Give your answer correct to 3 significant figures.

(3)

Mark scheme

Scheme	Marks
\(\pi \times 3^2\) (= \(9\pi\) = 28.27..) or \(\pi \times (3 + 2)^2\) (=\(25\pi\) =78.53..)	M1
\(\pi \times 5^2 - \pi \times 3^2\) oe eg \(16\pi\)	M1
50.3	A1
	(3)

Notes

M1: A correct calculation for the area of one of the circles

M1: A correct calculation for the shaded area

A1: 50.2 – 50.3
