4MA0 Higher January 2017 Paper 4 Q5
5 Abri walks along a path from her home to a local village.

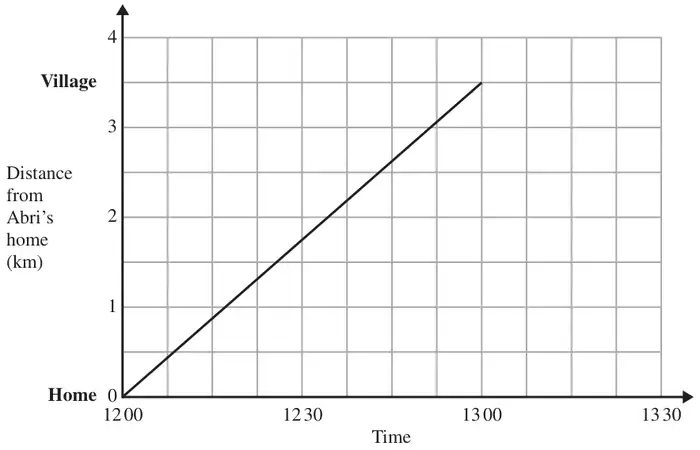

Here is the distance-time graph for her journey from her home to the village.
Benito leaves the village at 12 30 and walks at a constant speed along the same path to Abri’s home.
He arrives at Abri’s home at 13 15
(a) Show the information about Benito’s journey on the grid. (2)
(b) How far from the village were Abri and Benito when they passed each other? (1)
| Scheme | Marks |
|---|---|
| straight line from (12 30, 3.5) to (13 15, 0) | B2 |
| (2) |
Notes
B2: B1 for a single straight line with negative gradient that starts at (12 30, 3.5) or ends at (13 15, 0)
Ignore lines before 12:30
| Scheme | Marks |
|---|---|
| 1 | B1 |
| (1) | |
| (3 marks) |
Notes
B1: Ft if B1 scored in (a)
