4MA0 Foundation June 2016 Paper 2R Q19

EdexcelFoundationOld spec7 marksAngles in Polygons

19 Here is a kite ABCD.

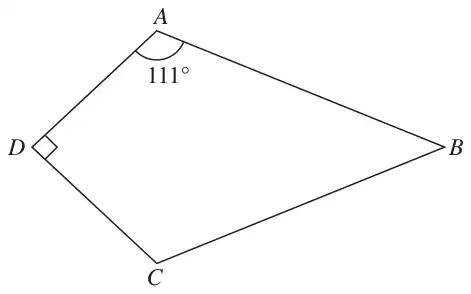

Kite ABCD with angle DAB = 111° and a right angle at D

Diagram NOT accurately drawn

Angle DAB = 111°
Angle ADC = 90°

(a) Work out the size of angle ABC. (2)

Two of these kites are arranged so that a shorter side of one of the kites is placed on top of a shorter side of the other kite, as shown in the diagram below.

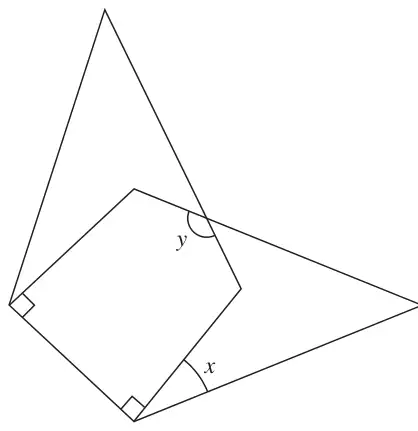

Two of the kites overlapping along a shorter side, with angles x and y marked

Diagram NOT accurately drawn

(b) Work out the size of angle \(x\). (2)

Scheme	Marks
360 − 2 × 111 − 90	M1
48	A1
	(2)

Scheme	Marks
111 − 90	M1
21	A1
	(2)

Mark scheme (c)

Scheme	Marks
540 − 90 − 90 − 111 – 111 or 180 – 2 × ‘21’ or 2 × (180 – 111) or 360 − 111 = 249 180 − (360 – ‘21’ − 249 − 48) oe	M2
138	A1
	(3)

Notes

M2: For a fully correct method to find angle \(y\) or M1 if using pentagon for (5−2)×180 (=540) or for an isosceles triangle drawn with \(y\) at apex or for showing use of parallel lines on diagram
