D1 June 2007 Q3

EdexcelOld spec9 marksAlgorithms

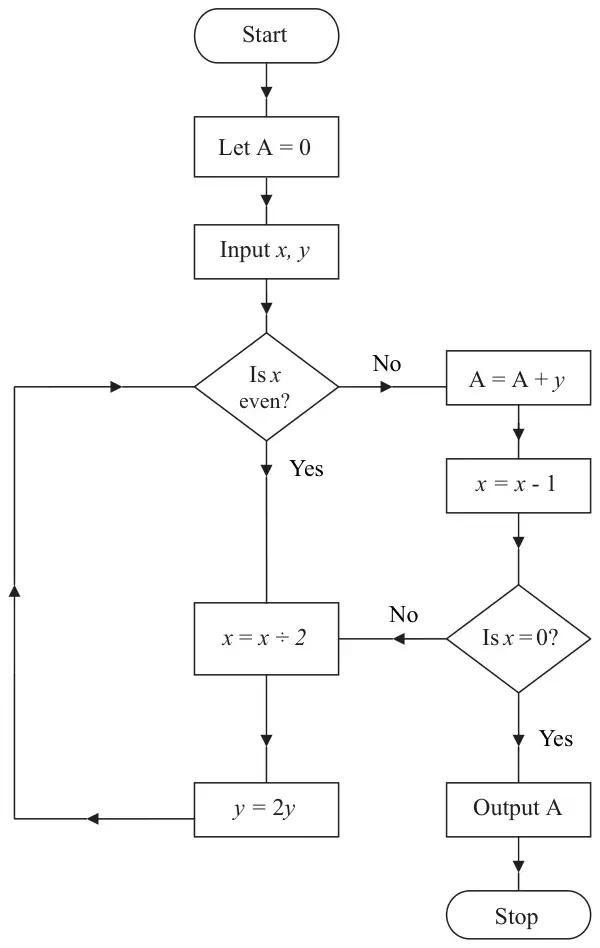

3. An algorithm is described by the flow chart shown in Figure 3.

Figure 3: flow chart. Let A = 0, input x, y; if x even, x = x / 2 and y = 2y and repeat; if x odd, A = A + y, x = x - 1, then if x = 0 output A and stop, else x = x / 2, y = 2y — Figure 3

(a) Given that \(x = 54\) and \(y = 63\), complete the table in the answer book to show the results obtained at each step when the algorithm is applied. (7)

(b) State what the algorithm achieves. (2)

Scheme	Marks
The product \(xy\).	B2, 1, 0
	(2)
	(9 marks)
