Higher November 2019 Paper 3 Q12

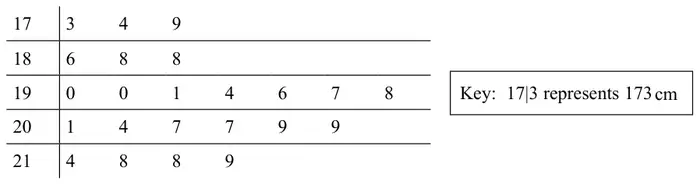

12 The stem and leaf diagram shows information about the heights, in cm, of 23 sunflowers.

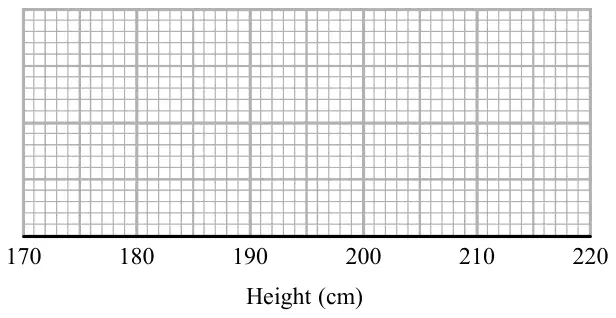

On the grid, draw a box plot for this information. (3)
| Answer | Mark | Mark scheme |
|---|---|---|
| Box plot | M1 | for correctly identifying one of the LQ (188), median (197) or UQ (209) from the stem leaf |
| M1 | for showing a box and at least 3 correctly plotted values from 173, 188, 197, 209, 219 | |
| A1 | for a fully correct box plot |
Additional guidance
May be implied by one of these values being correctly plotted.
