Higher June 2018 Paper 2 Q15

EdexcelCurrent spec5 marksTree Diagrams

15 A darts team is going to play a match on Saturday and on Sunday.
The probability that the team will win on Saturday is 0.45

If they win on Saturday, the probability that they will win on Sunday is 0.67
If they do not win on Saturday, the probability that they will win on Sunday is 0.35

(a) Complete the probability tree diagram.

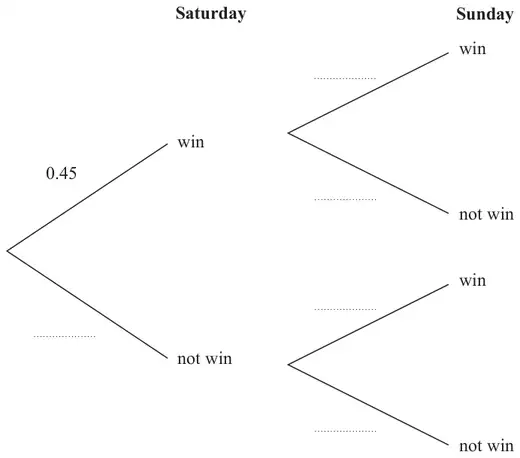

Probability tree diagram for Saturday and Sunday with branches win and not win; only the Saturday win branch is labelled 0.45 and the other five branches are blank
(2)
(b) Find the probability that the team will win exactly one of the two matches. (3)
