Foundation June 2018 Paper 2 Q22

AQACurrent spec2 marksTree Diagrams

22 Two ordinary fair dice are rolled.

(a) Complete the tree diagram. [1 mark]

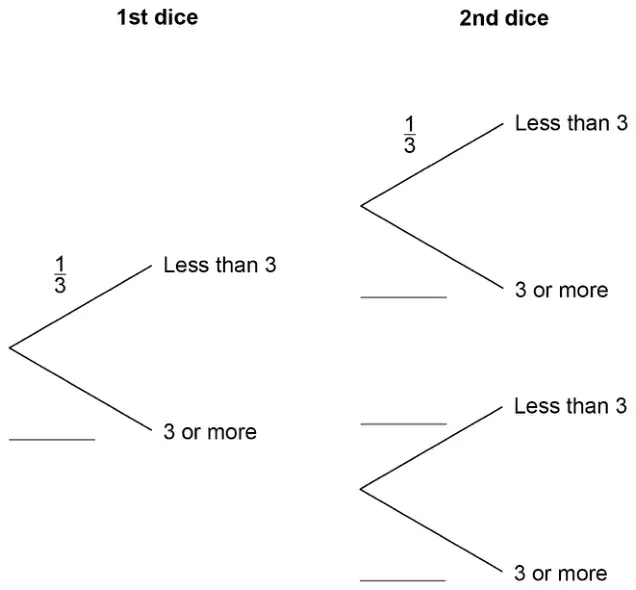

Tree diagram. 1st dice: Less than 3 with probability one third, 3 or more with a blank. 2nd dice after each branch: Less than 3 and 3 or more; only the first Less than 3 branch is labelled one third, the other three are blank
(b) Work out the probability that both dice land on a number less than 3 [1 mark]
